FISH YEAR-ROUND WITH THE ECHOMAP UHD ICE FISHING BUNDLE
Designed for the passionate angler, the ECHOMAP UHD 63cv ice fishing bundle is made for ice or open water and can be easily transported between seasons.
The sun won’t steal your screen. The bright 6” display is sunlight readable.
You need to see what’s beneath the surface. With the included transducer, you can.
With the built-in flasher, you won’t lose sight of the jig or the fish it attracts.
It’s all in the details. And with Canada LakeVü g3 maps, you’ll get them all on 13,000 lakes.

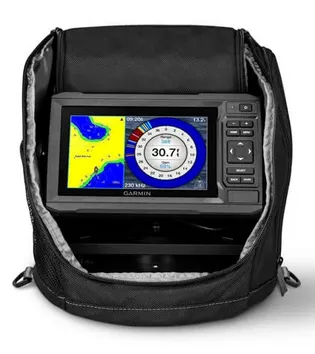

Everything goes where you go. All accessories fit in the rugged, portable carrying case.
General | |
| Physical dimensions | 10.5" × 9.5" × 10.5" (26.7 × 22.9 × 26.7 cm) |
|---|---|
| Display size | 5.4" x 3.1"; 6.2" diagonal (13.7 x 7.7 cm; 15.2 cm diagonal) |
| Display resolution | 480 x 800 pixels |
| Display type | WVGA display |
| Weight | 10.7 lbs (4.9 kg) |
| IPX7 | |
| Power consumption | 12 W |
| Antenna | Internal or external over NMEA 2000 |
| Receiver | 5 Hz |
| Garmin Marine Network™ ports | None |
| Transmit power | 250 W (RMS) |
Maps & Memory | |
| Preloaded maps | LakeVü g3 (inland maps) |
|---|---|
| Accepts data cards | 1 microSD™ card; 32 GB maximum card size |
| Waypoints | 5,000 |
| Track log | 50,000 points; 50 saved tracks |
| Routes | 100 |
Outdoor Recreation | |
| Tide tables | |
|---|---|
Chartplotter Features | |
| Garmin Sonar compatible | Yes |
|---|---|
Sonar Features & Specifications | |
| Frequencies supported | CHIRP High Wide (150-240 kHz) |
|---|---|
| CHIRP sonar technology | Yes (Built-in) |
| Maximum depth | 800 ft freshwater |
| Bottom lock (shows return from the bottom up) | |
| Sonar recording | |
| Sonar history rewind | |
Connections | |
| NMEA 2000® compatible | |
|---|---|
| Transducer pin numbers | 4-pin |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Wireless connectivity | |
Additional | |
| Additional |
|
|---|---|
